Replace cumbersome manual tools with a simple, fast and easy Simonds pneumatic sheet metal notcher
Simonds Pneumatic Sheet Metal Notcher
Dream it.
The idea was simple: replace flimsy and costly manual tools to notch sheet metal. The design goal included air-powered perfect angles, fast and reproducible work and improved ergonomics.
Build it.

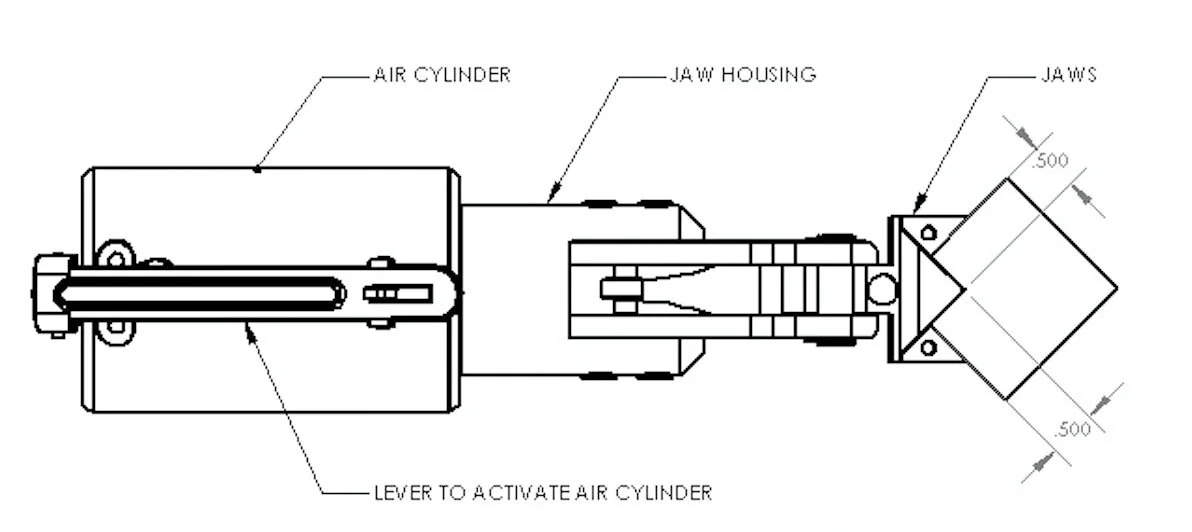

Harnessing Simonds’ 80 years of pneumatic tool-making know-how, the team built a custom jaw set powered by our off-the-shelf pneumatic power packs to keep costs contained.
Prove it.

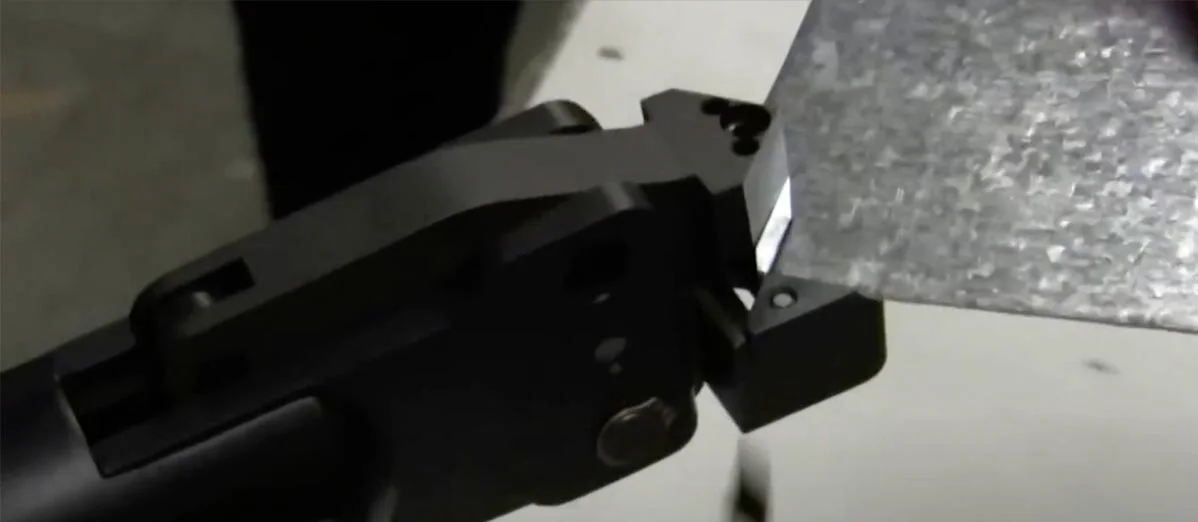

The result is a tool that achieves not only design goals, but user satisfaction. Simonds Sheet Metal Notching tools are first-class quality, easily serviceable both in the field and at the factory for full reconditioning.
Interested in more information on our off-the-shelf sheet metal notcher or custom options? Click the button below.
Like all Simonds tools, this notcher is built to world-class standards including:
hard coat anodized
Steel pistons and all metal components
High-grade seals
Jaws are hardened to R/C 50-52
Dies are hardened to R/C 57/59
| Notching Tools | |||
|---|---|---|---|
| Notch Size | 1/2" | 3/4" | 1" |
| Steel Size Limits | Up to 20 GA. CRS, HRP and galvanized steel. 22 GA ST. ST. | Up to 20 GA. CRS, HRP and galvanized steel. | Up to 20 GA. CRS, HRP and galvanized steel |
| PSI Required | 80-90 PSI, 1/8 NPT inlet on tool | 80-90 PSI, 1/8 NPT inlet on tool | 80-90 PSI, 1/8 NPT inlet on tool |
| Closing Force | 1350 lbs | TBD | TBD |
| Maximum Duty | Approximately 25 notches per minute | Approximately 25 notches per minute | Approximately 25 notches per minute |
