Taking pneumatic crimping tools to new levels of ease and speed.

Coax, Stranded Wire, Hex-style, Open/Closed Barrel

Complete Assembly: UC-90

Simonds complete tool.

Simond’s UC-90 is a complete assembly ready and on the shelf for you. Simply select from the jaws below that correspond to the job you need done and you’ve got everything you need to be up and running in no time.

The UC-90 is Simonds complete offering featuring:

Pneumatic power pack (SP-004F)
UC-9 universal crimp jaw with housing
Fully adjustable bench stand
Foot switch

Air Crimping of Cable ends

See how easy it is to install connectors with a Simonds air-powered tool. Our pneumatic crimpers are the industry-leaders in durability, uptime and ergonomics.

Get the PDF.

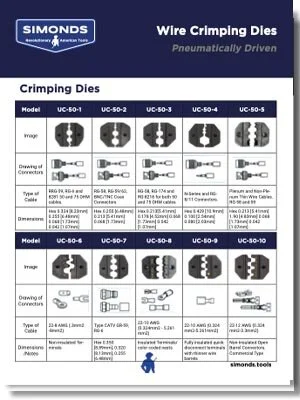

We’ve put together our library of crimping dies just for you. This shareable PDF lists each die, their connectors, type of cable and full dimensions.

Choose a die:

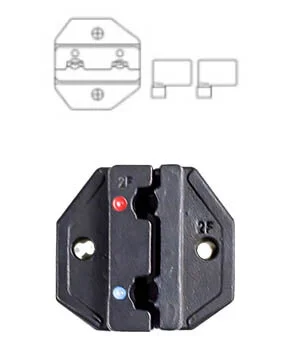

UC-50-1
Type of Cable	RRG-59, RG-6 and 8281 50 and 75 OHM cables.
Dimensions	Hex 0.324 [8.23mm] 0.255 [6.48mm] 0.068 [1.73mm] 0.042 [1.07mm]

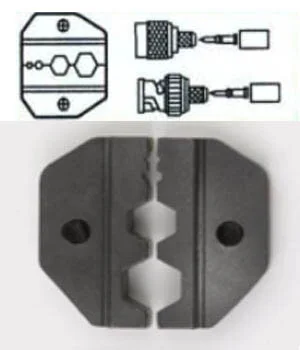

UC-50-2
Type of Cable	RG-58, RG-59/62, BNC/TNC Coax Connectors
Dimensions	Hex 0.255 [6.48mm] 0.213 [5.41mm] 0.068 [1.73mm]

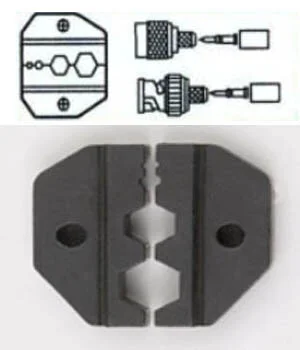

UC-50-3
Type of Cable	RG-58, RG-174 and RG-8218 for both 50 and 75 OHM cables
Dimensions	Hex 0.213[5.41mm] 0.178 [4.52mm] 0.068 [1.73mm] 0.042 [1.07mm]

UC-50-4
Type of Cable	N-Series and RG-8/11 Connectors.
Dimensions	Hex 0.429 [10.9mm] 0.100 [2.54mm] 0.080 [2.03mm]

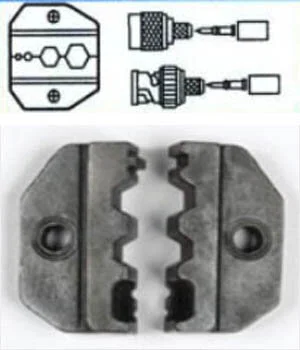

UC-50-5
Type of Cable	Plenum and Non-Plenum Thin Wire Cables. RG-58 and 59
Dimensions	Hex 0.213 [5.41mm] 1.90 [4.83mm] 0.068 [1.73mm] 0.042 [1.07mm]

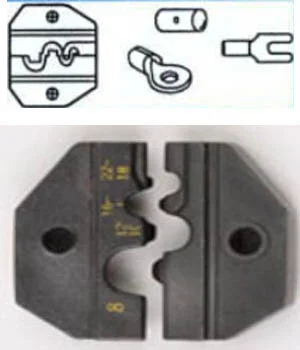

UC-50-6
Type of Cable	22-8 AWG (.3mm2 -8mm2)
Note	Non-insulated Terminals

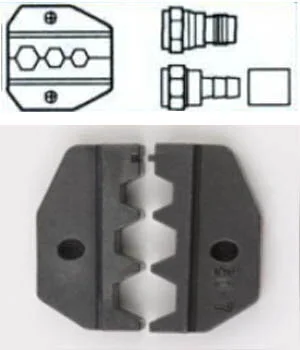

UC-50-7
Type of Cable	Type CATV GR-59, RG-6
Dimensions	Hex 0.350 [8.89mm], 0.320 [8.13mm], 0.255 [6.48mm]

UC-50-8
Type of Cable	22-10 AWG (0.324mm2 - 5.261 mm2)
Note	Insulated Terminals/color coded nests

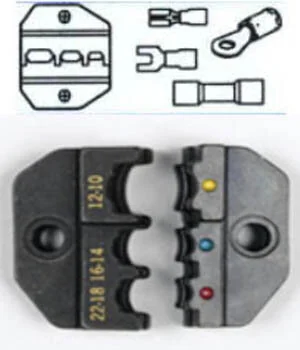

UC-50-9
Type of Cable	22-10 AWG (0.324 mm2-5.261mm2)
Note	Fully insulated quick disconnect terminals with thinner wire barrels

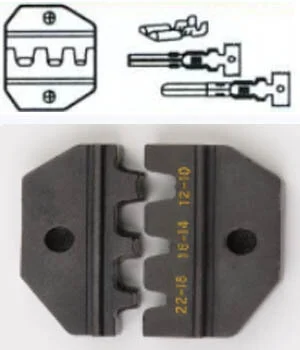

UC-50-10
Type of Cable	22-12 AWG (0.324 mm2-3.3mm2)
Note	Insulated Open Barrel Connectors. Commercial Type

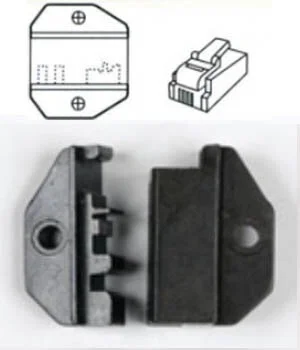

UC-50-12
Type of Cable	Universal RJ-11
Note	Die for 2, 4, and 6 position modular plugs

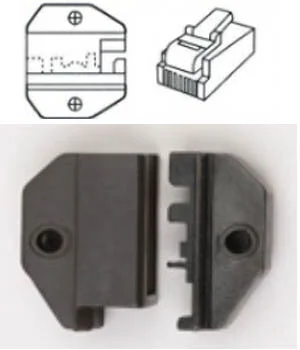

UC-50-13
Type of Cable	RJ-45
Note	Die for 8 position die set for keyed & non-keyed modular plugs (excluding AMP)

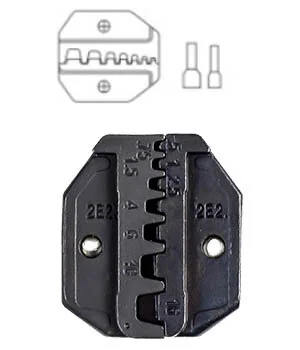

UC-50-17
Type of Cable	AWG 22-10/18-16/14-12/10-6 DIN (0.5/0.75/1.0/1.5/2.5/4/6/10/16mm²)
Note	Pin Terminal Non-insulated.

UC-50-18
Type of Cable	AWG 20-18/16-14/12-10/8 (0.5-1/1.5-2.5/6-6mm²)
Note	Insulated Open Barrel

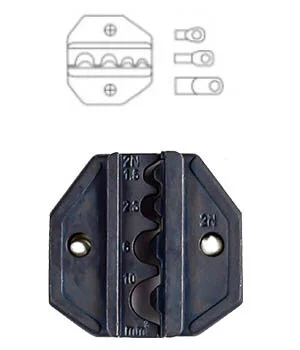

UC-50-19
Type of Cable	AWG 20-18/16-14/12-10/8 DIN 1.5/2.5/6/10mm²JIS 1.25/2.05.5/6/10mm²
Note	Pin Terminal Non-insulated.

UC-50-20
Type of Cable	AWG 22-18 / 16-14 DIN 0.5/1.5-2.5mm²
Note	Insulated Flag Terminal

UC-L - Optional Locator Shelf can assist with uniform crimping and safety.

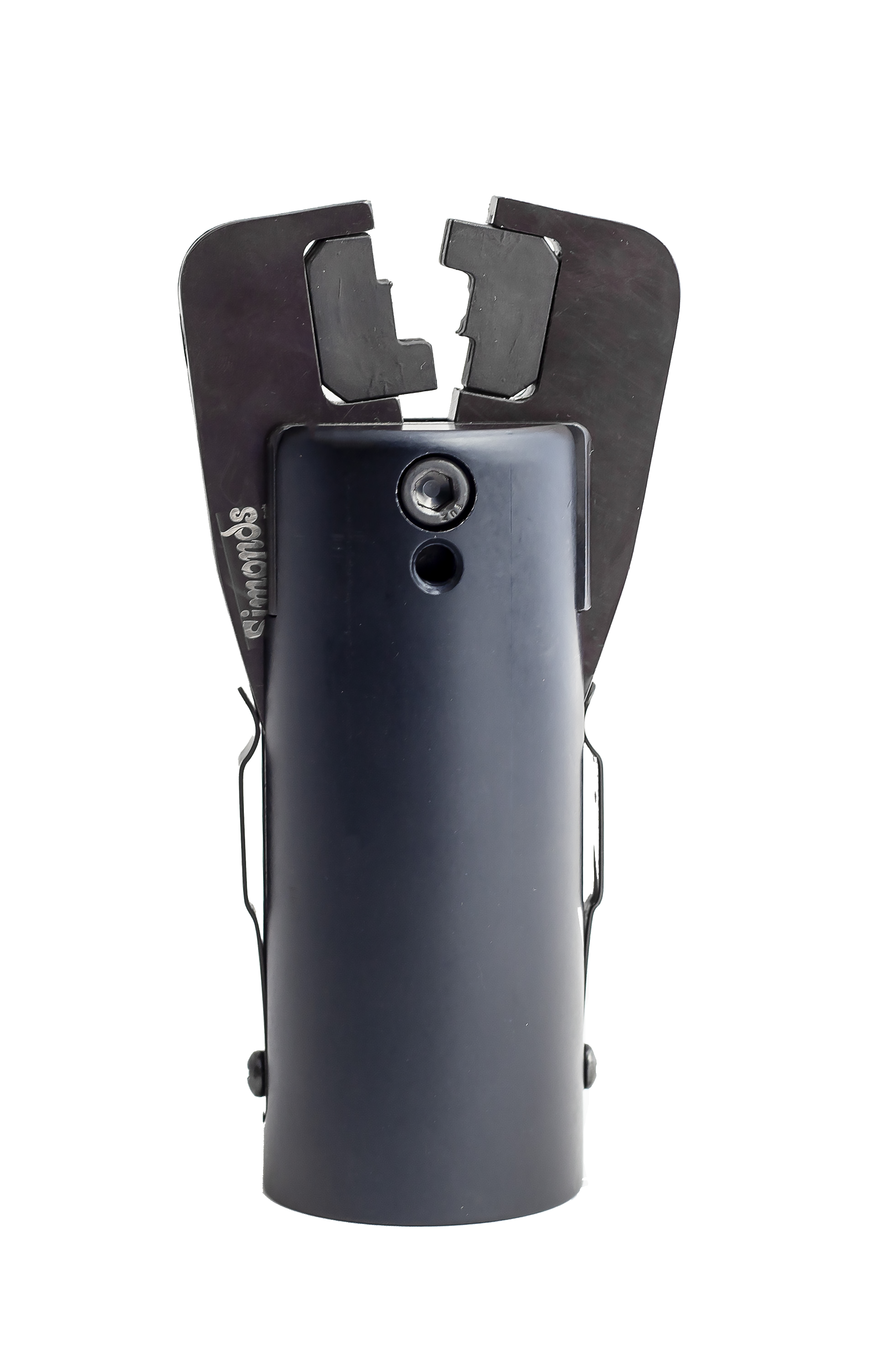

CM-3 Jaw and Housing

The Simonds CM-3 secures solder-less terminals to solid or stranded, bare or insulated wire to meet most requirements of several MIL Specs. Featuring a durable CNC’d aluminum housing with hardened tool steel jaws. Optional inserts handle 22-8 AWG wire. Most crimping performed with “F” style power packs.

Choose the Power Pack that’s right for the job (inlet air pressure of 80psi will develop approximately the crimping forces shown below using the corresponding power pack:

Power Pack	SP-002	SP-003	SP-004	SP-005
Force lbs.	up to 1800	up to 2000	up to 2400	up to 3500
Force kgs.	up to 815	up to 910	up to 1090	up to 1590

CMX-99 INSERT
Wire Gauge	14-22
Terminal Bare Wire	YES
Insulated Wire

CM3-3 INSERT
Wire Gauge	8-16
Terminal Bare Wire	N/A
Insulated Wire

CM3-2 INSERT
Wire Gauge	12-16
Terminal Bare Wire	N/A
Insulated Wire

CM3-4 INSERT
Wire Gauge	Wire Cap
Terminal Bare Wire	N/A
Insulated Wire	14-22

Want to know more about the CM-3 System?

Can’t find one just right for you? Let’s get an engineer involved and make one!
