Built to last in Southbridge, Massachusetts.





Air powered plastic sprue cutters

From simple degating to trimming sprues, Simonds produces pneumatic hand tools engineered to make your job easier, faster and more accurate.

You can find our robotic end of arm tools here.

hydraulic catalog icon.png


Simonds values your privacy and will not share your data.

Hand and Foot operated pneumatic air tools built especially for Cutting Plastic (up to 850 lbs of closing force)

Light Duty Air Cutters for pneumatic degating and trimming; air nippers.

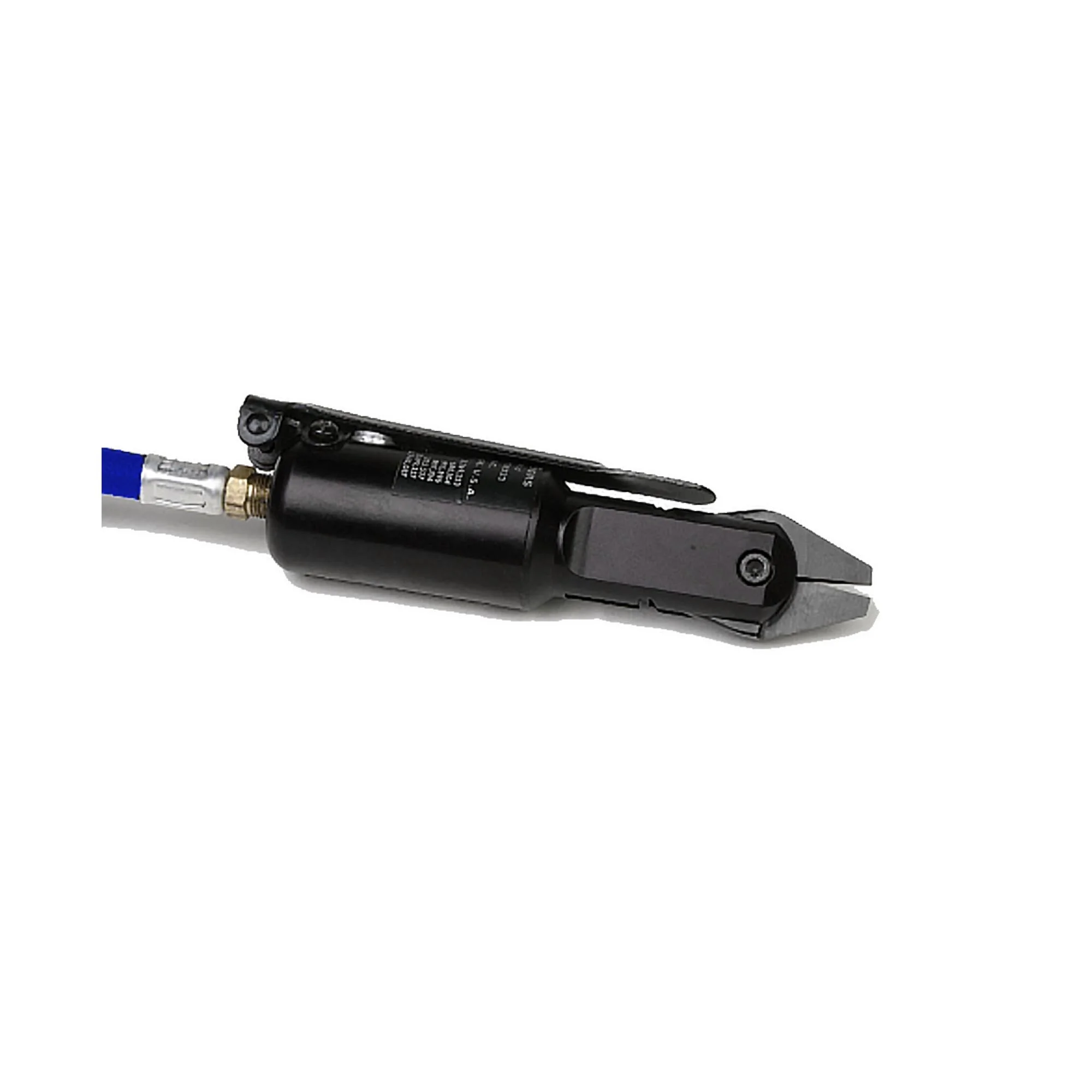

MSP1 double 2000.jpg

MSP-1

This miniature pneumatic power pack is designed for cutting. Features CNC’d aluminum body, custom valving and your choice of jaws below.

MSP-1 [MSP-1F foot operated]
Length 5" (12.7mm)
Weight 11 oz.
Diameter 1.25" (31.75mm)
CFM @ 30 Strokes per Minute 0.03 cfm
Closing Force @ 80 PSI Up to 100 lbs*
Material Aluminum
Cam Piston Style
sp-01p 2000.jpg

SP-01P

The next step up in our line of air nippers, this unit ups the cutting power with minimal size increase. Fully CNC’d machined in the United States of America.

SP-01 [SP-01F foot operated]
Length 5.5" (13.97mm)
Weight 11 oz.
Diameter 1.5" (38.1mm)
CFM @ 30 Strokes per Minute 0.041 cfm
Closing Force @ 80 PSI Up to 575 lbs*
Material Aluminum
Cam Piston Style

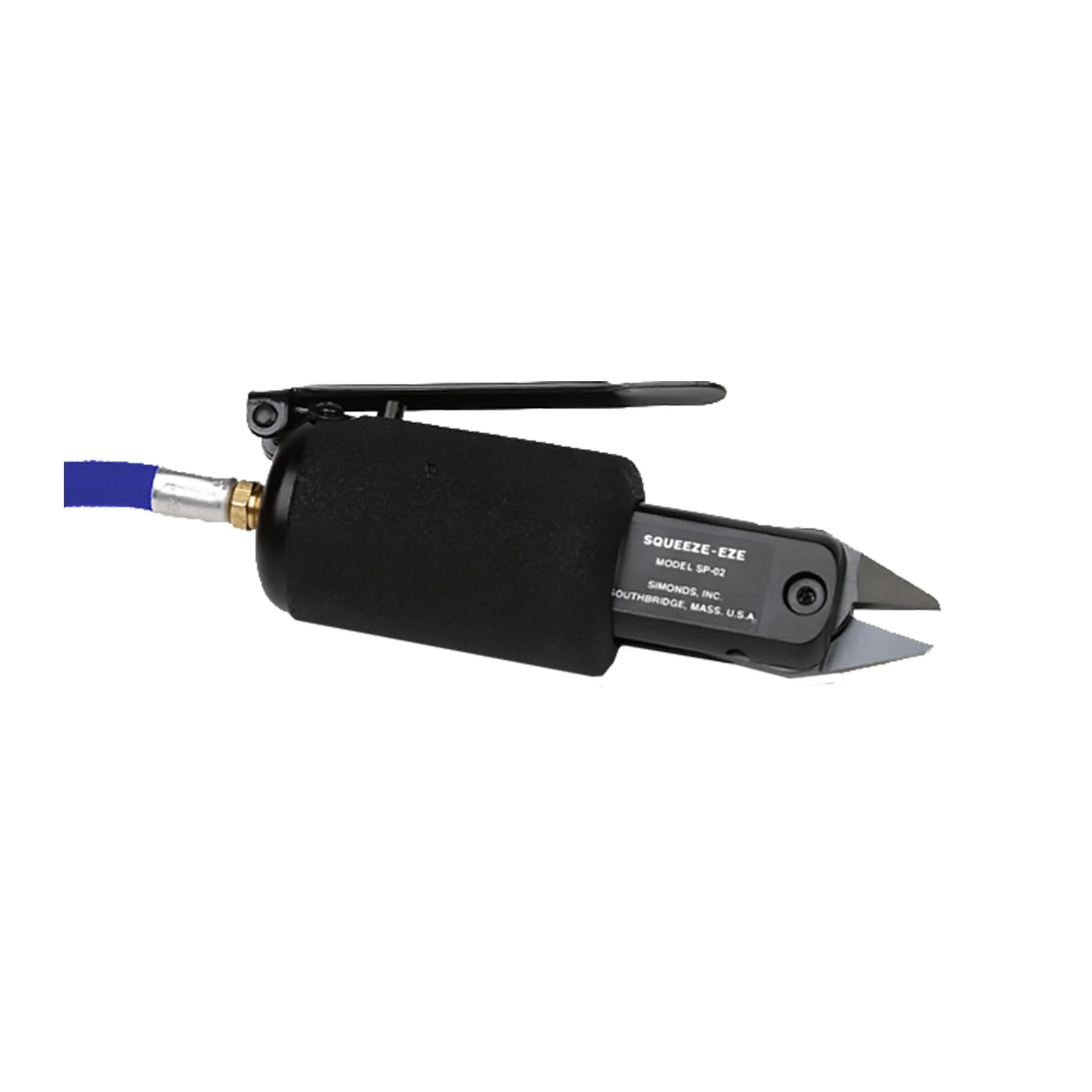

sp-02p 2000.jpg

SP-02P

With up to 850lbs of closing force, the SP-02P is a great choice for degating trimming. CNC’d aluminum body, custom valving and made in the USA.

SP-02P [SP-02PF foot operated]
Length 5.5" (13.97mm)
Weight 13 oz.
Diameter 1.75" (44.45mm)
CFM @ 30 Strokes per Minute 0.045 cfm
Closing Force @ 80 PSI Up to 850 lbs*
Material Aluminum
Cam Piston Style
PGC-2CH
Angle 18°
Length of Cut 15/16" (23.8mm)
Type of Cut Flush
Max Opening 31/64" (12.25mm)
CD-6CH
Angle 15°
Length of Cut 7/8" (22mm)
Plastic only Tapered Outside Edge
Max Opening To 0.18" (4.75mm)
PGC-2-45
Angle 45°
Length of Cut 1 1/16" (26.97mm)
Type of Cut Flush
Max Opening 29/64" (11.48mm)
PGC-7
Angle Straight Cutter
Length of Cut 1" (25mm)
Type of Cut Flush
Max Opening 7/16" (11.23mm)
PGC-2-60
Angle 60°
Length of Cut 15/16" (23.83mm)
Type of Cut Flush
Max Opening 13/32" (10.5mm)

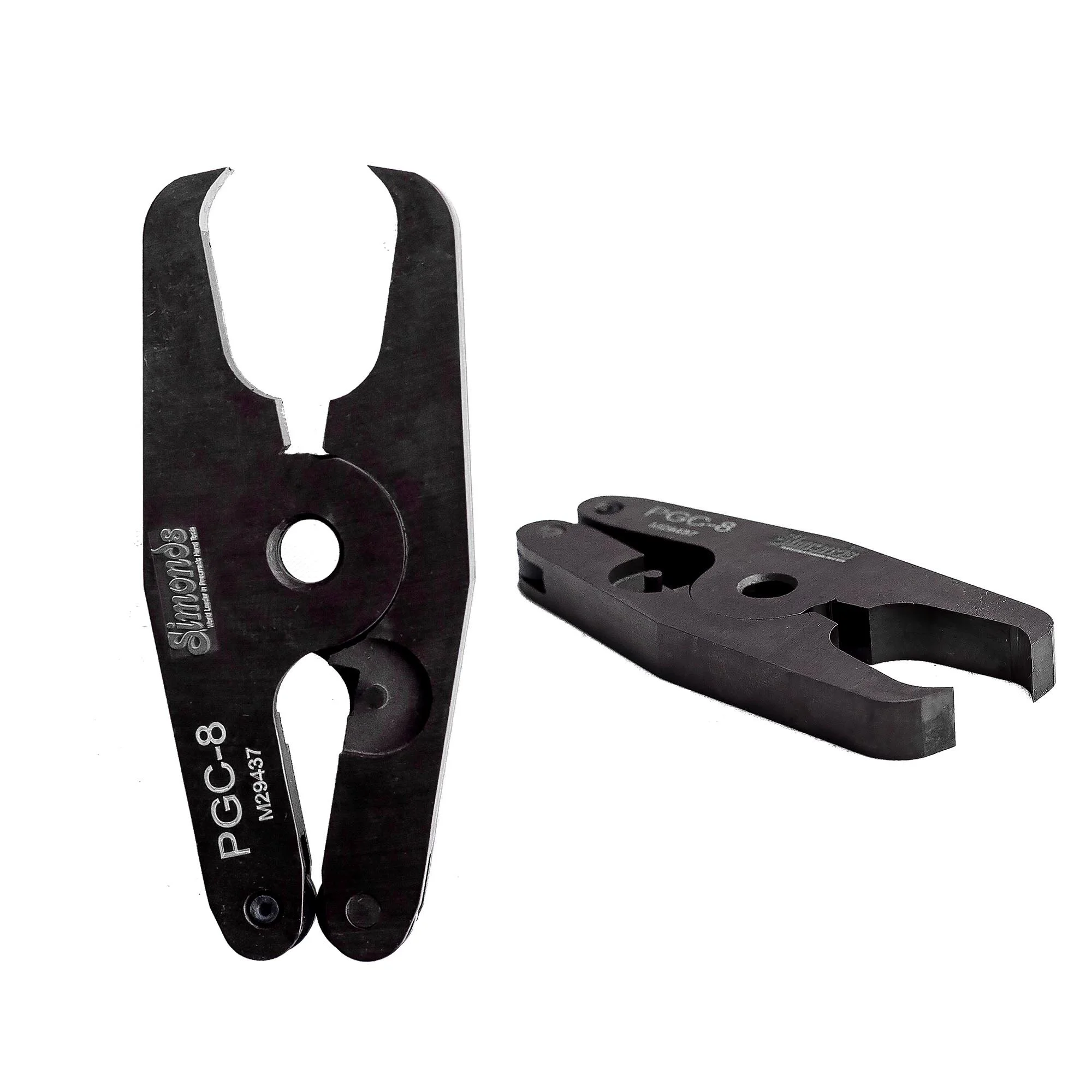

PGC-8
Angle End Cutter
Length of Cut .30" (7.62mm)
Type of Cut Flush
Max Opening 29/64" (11.70mm)
PGC-2-90
Angle 60°
Length of Cut 1 1/4" (31.75mm)
Type of Cut Flush
Max Opening 23/64" (9.06mm)
Custom jawset.jpg

Because Simonds creates jaws in-house, we have the ability to quickly create custom jaws just for your application. Reach out and see just how easy it is.

Air Power Packs with over 1000 lbs of closing force



Our most popular sizes, these air cutters are available in hand lever-actuated designs or in foot-actuated options. These units include a 5’ air hose assembly included. Shown with optional jaw sets - Simond’s gives you the ultimate in flexibility in choosing off-the-shelf jawsets or working with to develop a custom jawset for your application.

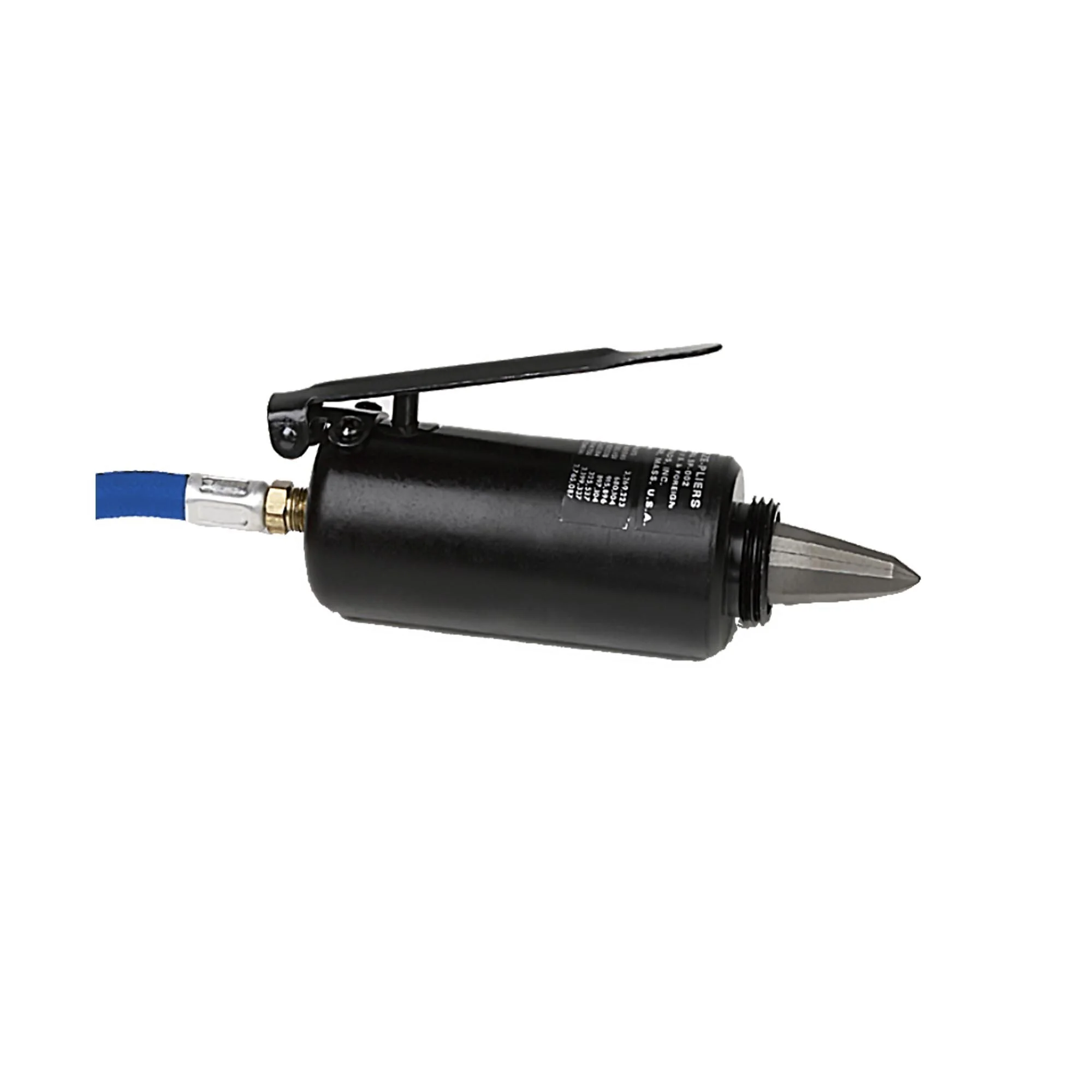

sp-002 2000.jpg

SP-002 Pneumatic Power Pack

This is the tool that put us on the map. Proudly built in-house in Massachusetts, this tool features 1/8” ports and includes a 5’ hose assembly.

SP-002
Length 4" (101.6mm)
Weight 1lb
Diameter 1.72" (43.75mm)
CFM @ 30 Strokes per Minute 0.09 cfm
Closing Force @ 80 PSI Up to 1120 lbs*
Material Aluminum
Cam Hexagon

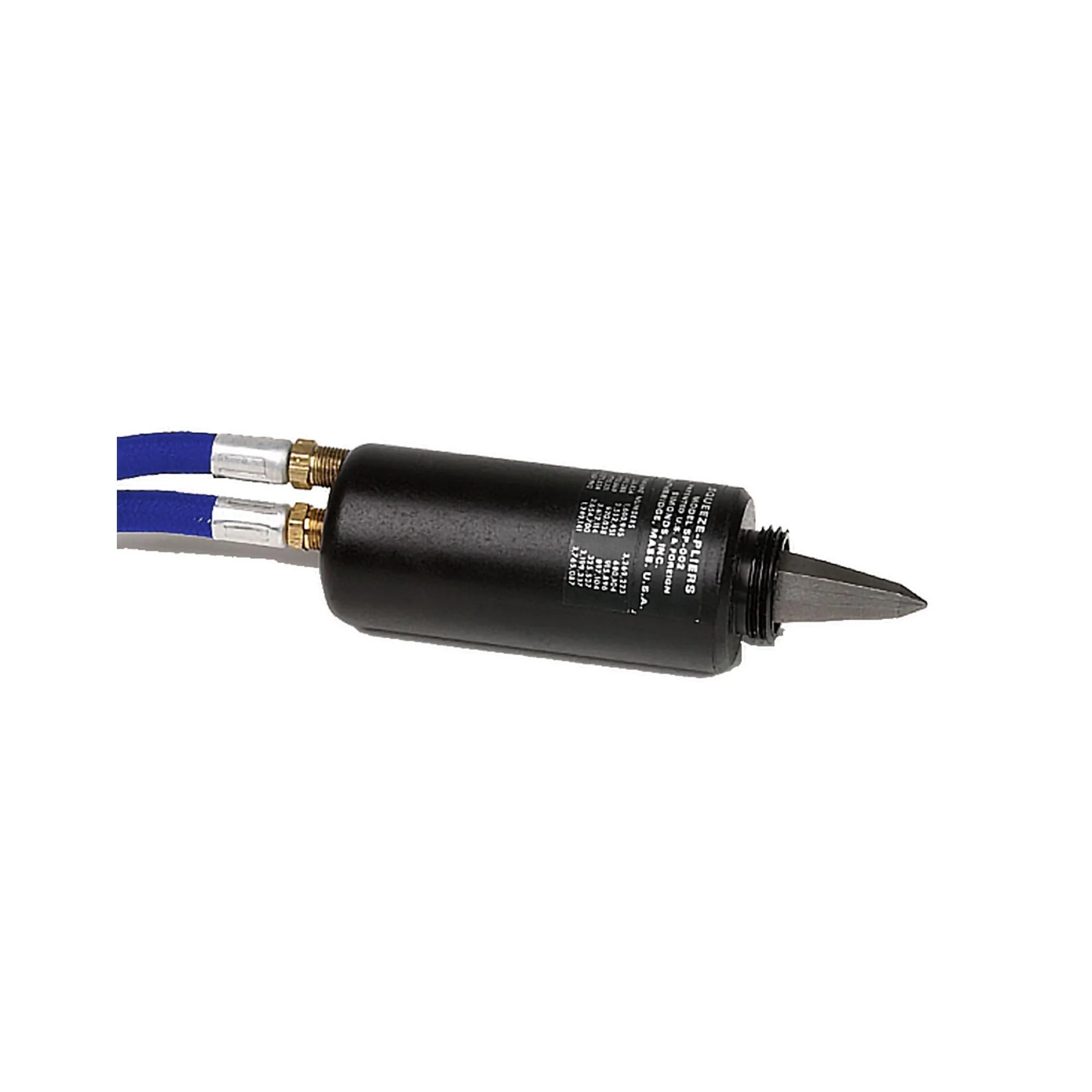

sp-002f 2000.jpg

SP-002F Pneumatic Power Pack

Foot-operated version of our most popular tool. Find a bench stand here. Includes 2 5’ air hose assemblies for easy installation.

SP-00F Foot-Operated
Length 4" (101.6mm)
Weight 1lb
Diameter 1.72" (43.75mm)
CFM @ 30 Strokes per Minute 0.09 cfm
Closing Force @ 80 PSI Up to 1120 lbs*
Material Aluminum
Cam Hexagon

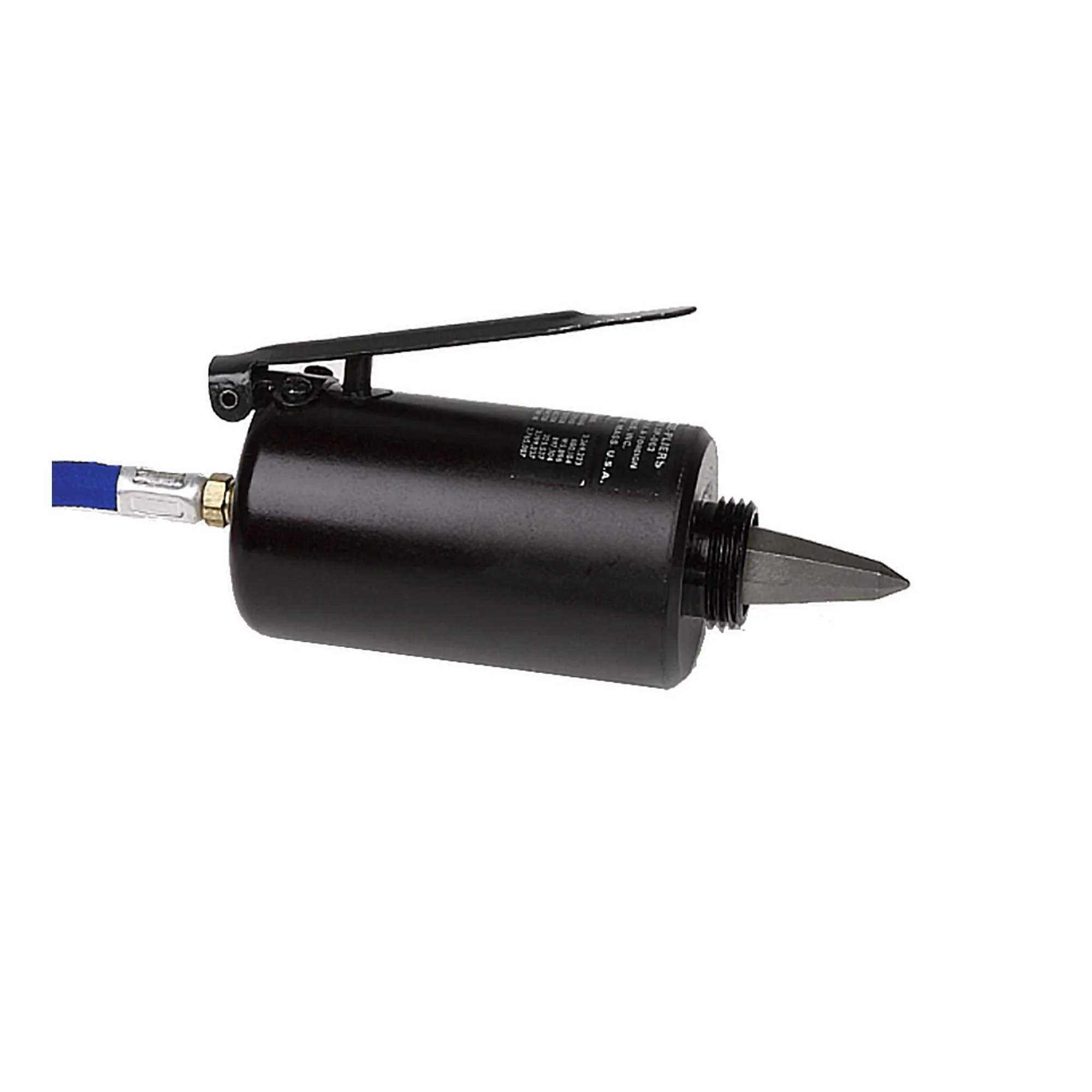

sp-003 2000.jpg

SP-003 Pneumatic Power Pack

Doubling cutting force, this Simond’s tool features a painstakingly CNC’d aluminum body mated to a high-performance piston for trouble-free use.

SP-003
Length 4" (101.6mm)
Weight 1lb 7oz
Diameter 2.22" (56.25mm)
CFM @ 30 Strokes per Minute 0.16 cfm
Closing Force @ 80 PSI Up to 2000 lbs*
Material Aluminum
Cam Hexagon
sp-004 2000.jpg

SP-004 Pneumatic Power Pack

SP-004
Length 4" (100mm)
Weight 1lb 8oz
Diameter 2.46" (62.50mm)
CFM @ 30 Strokes per Minute 0.20 cfm
Closing Force @ 80 PSI Up to 2400 lbs*
Material Aluminum
Cam Hexagon

SP-004F Foot-Operated

SP-004F Foot-Operated
Length 4" (100mm)
Weight 1lb 8oz
Diameter 2.46" (62.50mm)
CFM @ 30 Strokes per Minute 0.20 cfm
Closing Force @ 80 PSI Up to 2400 lbs*
Material Aluminum
Cam Hexagon
sp-002.5 2000.jpg

SP-002.5 Pneumatic Power Pack

SP-002.5
Length 5.75" (146.05mm)
Weight 1.5lb
Diameter 2.0" (50.8mm)
CFM @30 Strokes per Minute 0.30 cfm
Closing Force @ 80 PSI Up to 2400 lbs*
Material Aluminum
Cam Hexagon

SP-002.5F Foot-Operated

SP-002.5F Foot-Operated
Length 5.75" (146.05mm)
Weight 1.5lb
Diameter 2.0" (50.8mm)
CFM @30 Strokes per Minute 0.30 cfm
Closing Force @ 80 PSI Up to 2400 lbs*
Material Aluminum
Cam Hexagon

Jaws for Pneumatic Power Packs over 1000lbs closing force

PGC-4CH
Housing Length 4 1/4" (101.25mm)
Overall Length 5 7/8" (149mm)
Weight 1lbs 5oz
Diameter 1 3/4" (44.45mm)
Length of Cut 7/8" (21.62mm)
Max Opening 5/8" (15.85mm)
Cutting Angle 25°

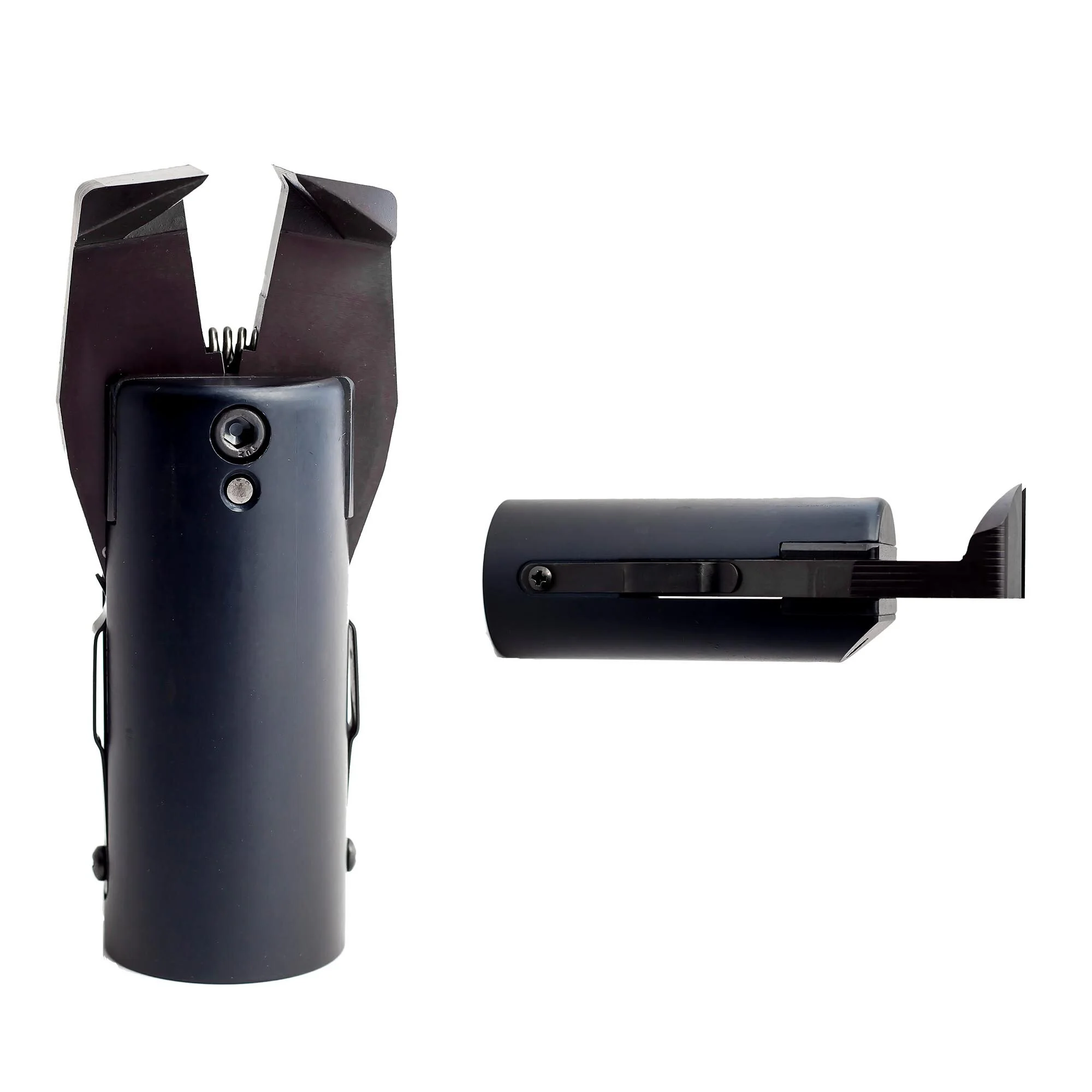

PGC-4 90 double 2000.jpg
PGC-4-90
Housing Length 4 1/4" (101.25mm)
Overall Length 5 1/2" (139mm)
Weight 1lbs 5oz
Diameter 1 3/4" (44.45mm)
Length of Cut 1 3/16" (30.18)
Max Opening 17/32" (13.64mm)
Cutting Angle 90°

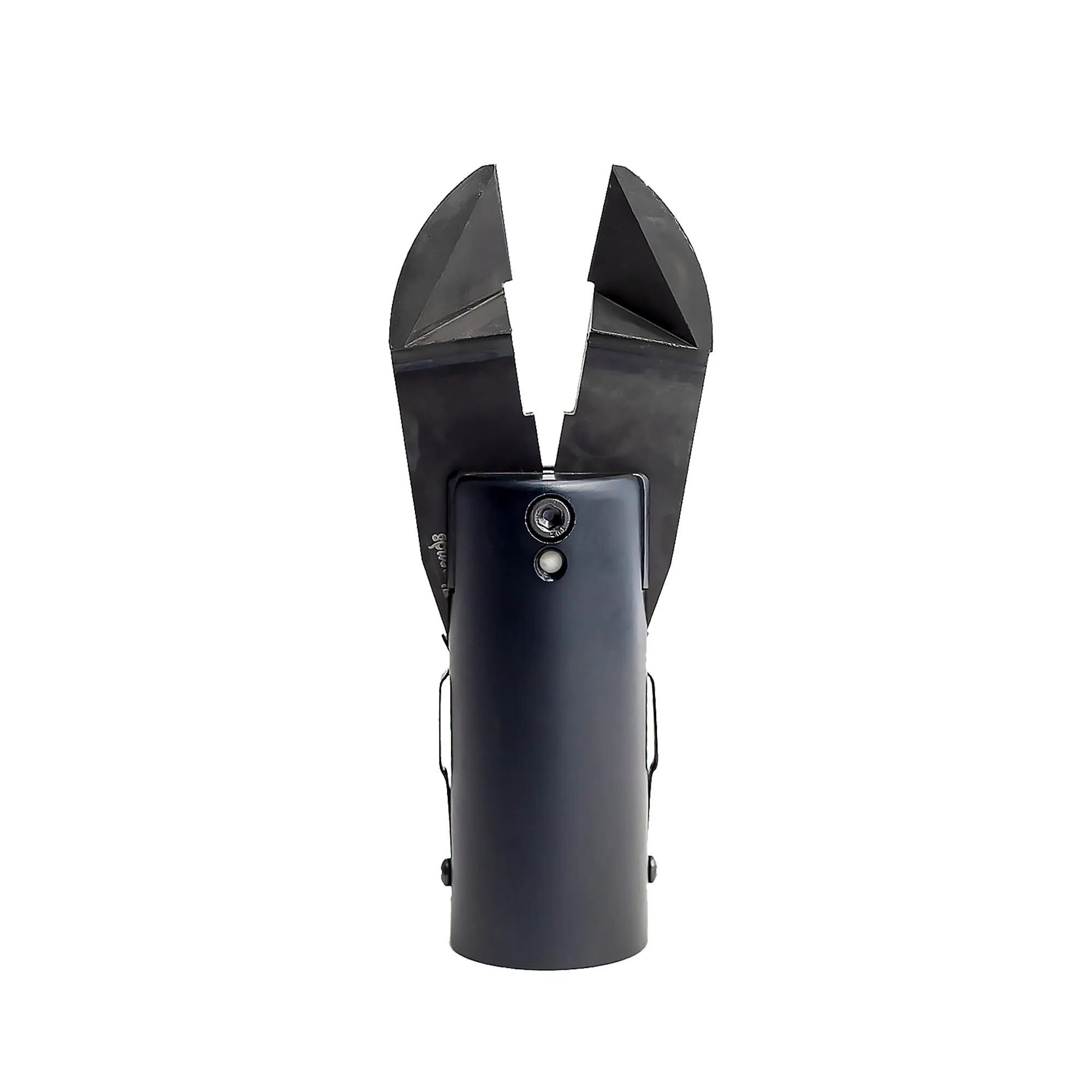

PGC-4 30 2000.jpg
PGC-4-30
Housing Length 4 1/4" (101.25mm)
Overall Length 6 5/8" (175mm)
Weight 1lbs 5oz
Diameter 1 3/4" (44.45mm)
Length of Cut 1 3/16" (30.18mm)
Max Opening 7/8" (22.48)
Cutting Angle 30°

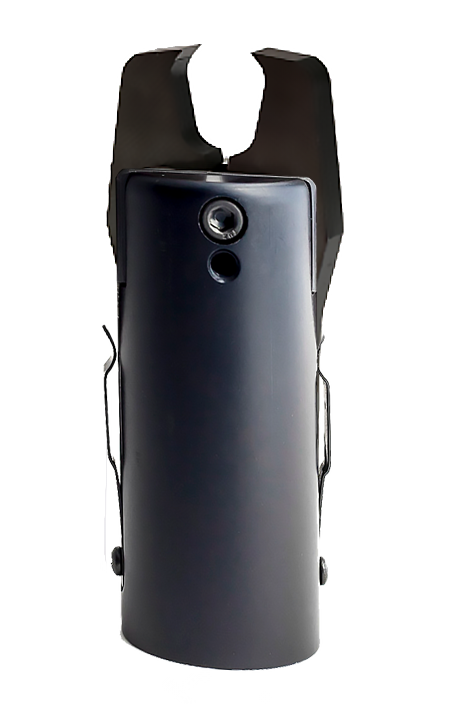

F-206 temp.png
F-206
Housing Length 4 1/4" (101.25mm)
Overall Length 5 13/32" (137mm)
Weight 1lbs 5oz
Diameter 1 1/2" (38.1mm)
Length of Cut 3/8" (9.53mm)
Max Opening 13/32" (137mm)
Cutting Angle End Cutter
PGC-4-45
Housing Length 4 1/4" (101.25mm)
Overall Length 6 3/16" (157mm)
Weight 1lbs 5oz
Diameter 1 3/4" (44.45mm)
Length of Cut 1 5/32" (29.35mm)
Max Opening 11/16" (28.12)
Cutting Angle 45°
PGC-4-60
Housing Length 4 1/4" (101.25mm)
Overall Length 6" (152mm)
Weight 1lbs 5oz
Diameter 1 3/4" (44.45mm)
Length of Cut 1 5/32" (29.35mm)
Max Opening 11/16" (22.48)
Cutting Angle 60°
Custom jawset.jpg

Because Simonds creates jaws in-house, we have the ability to quickly create custom jaws just for your application. Reach out and see just how easy it is.



Note: F-206 is compatible with:

  • SP-002

  • SP-003

  • SP-004

I’ve got plastic to cut, just hook me up with your engineers.” Sure, we can do that.
