Simonds Power Packs deliver a pneumatic punch.
Simonds offers several sizes of power packs to meet your challenge.
Simonds trusted designs power everything from aerospace industry production lines to Zoo keeper needs. The key is the surprisingly simple pneumatic power pack design. Machined from a single piece of aluminum stock, Simonds takes the old-fashion approach of fewer parts equal fewer leak points. The result? The best pneumatic tools powering today’s workforce.
Simonds Power Packs are made right here, in Southbridge, Massachusetts, USA. Our employees are so much more than folks who collect paychecks - we employ craftsfolk, artists, creative thinkers, dreamers and so many more! Simonds takes great pride in building these revolutionary tools.
LIGHT-DUTY POWER PACKS
Jaw Sets Sold Separately

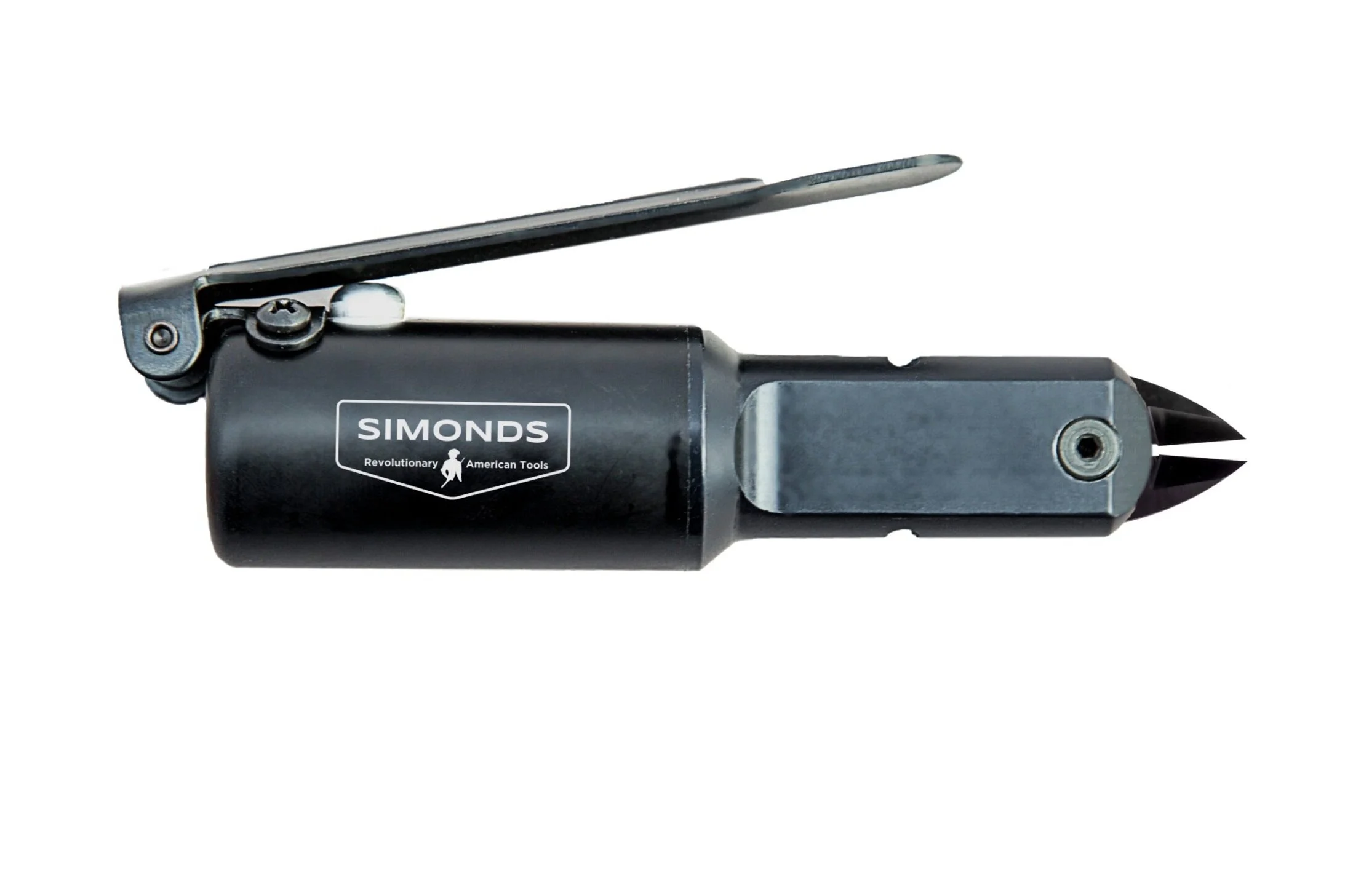

MSP-1
Simonds most maneuverable cutter! Less than a pound in weight and just 5” long, the MSP-1is easy to speed up cutting tasks.
SP-01P
A small step increase in size with more pneumatic power (up to 575 lbs!), the SP-01P is small in hand and big on efficiency.
SP-02P
With up to 850 lbs of closing force, this is choice for wire cutting . CNC’d aluminum with custom-valving.
SM-50
Perfect for robotic and automatic uses, the SM-100 is the perfect choice with Made in the USA quality.
| Light-Duty Pneumatic Single Stage Power Packs | ||||
|---|---|---|---|---|
| Part Number | MSP-1 | SP-01P | SP-02P | SM-50 |
| Length | 5" (127mm) | 5.5" (139.7mm) | 5.5" (139.7mm) | 3.72" (100mm) |
| Weight | 11 oz | 11 oz | 13 oz | 4 oz |
| Diameter | 1.25" (31.75mm) | 1.5" (38.1mm) | 1.75" (44.45mm) | 1.25" (31.75mm) |
| CFM@30 Strokes/Min | 0.03 cfm | 0.041 cfm | 0.045 cfm | 0.03 cfm |
| Closing Force @ 80psi | Up to 100 lbs | Up to 575 lbs | Up to 850 lbs | Up to 56 lbs |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Options | Foot-controlled (MSP-1F) | Foot-controlled (SP-01PF); Reverse Valve (SP01P-RV) | Foot-controlled (SP-02PF), Reverse Valve (SP02P-RV) | N/A |
Find Jaw Sets (sold separately) designed for these power packs by use:
MEDIUM-DUTY POWER PACKS
Jaws Sold Separately

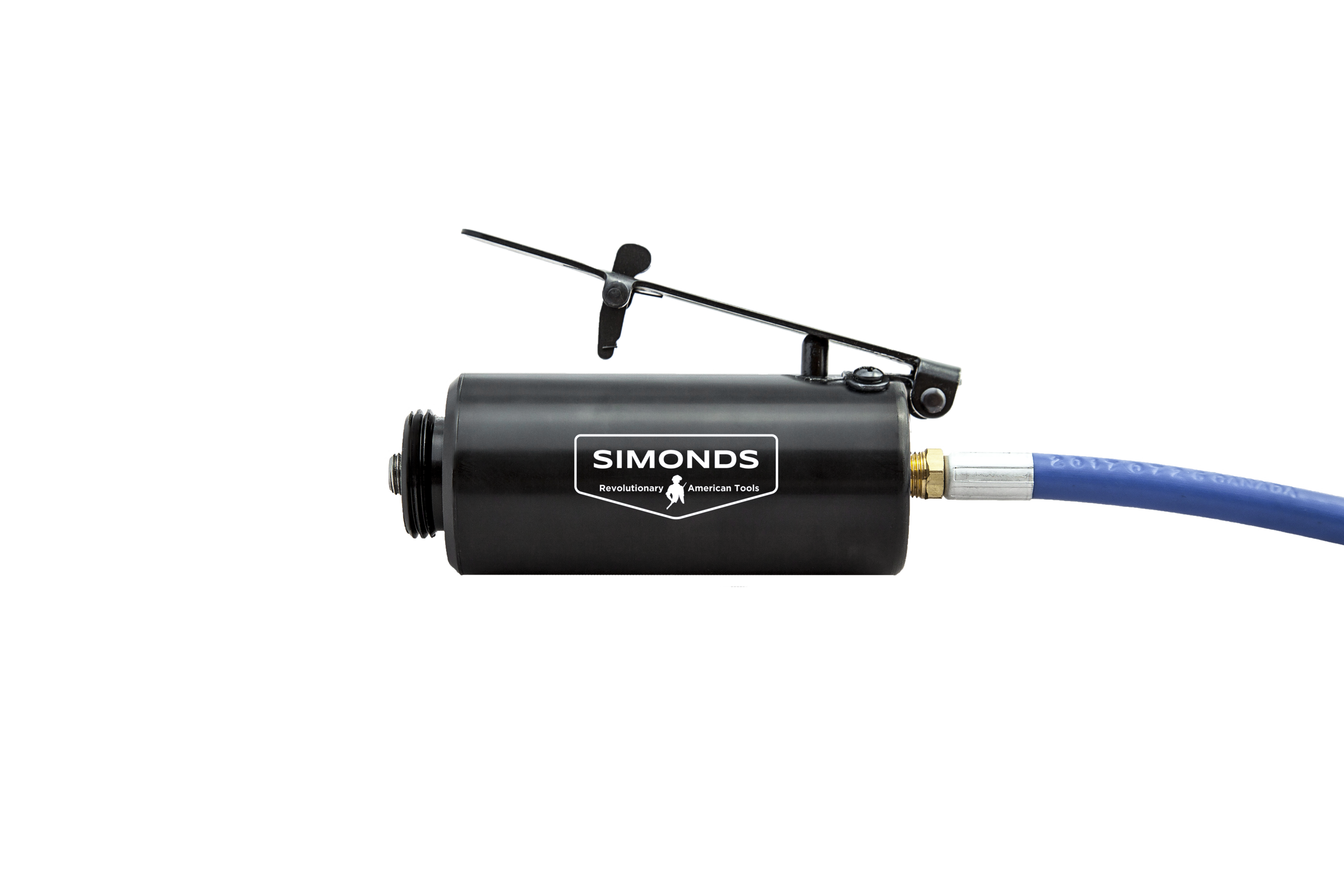

SP-002

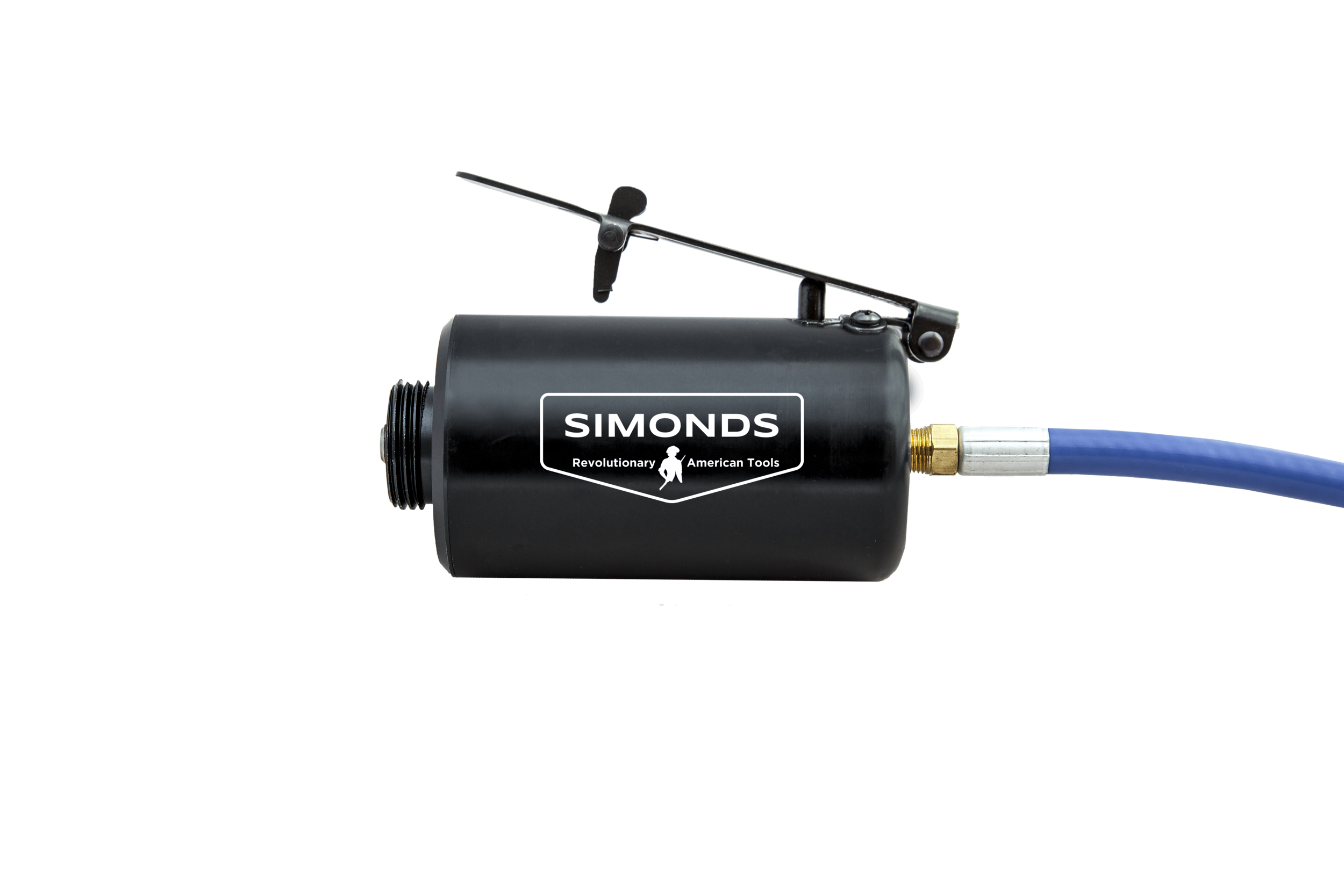

SP-003

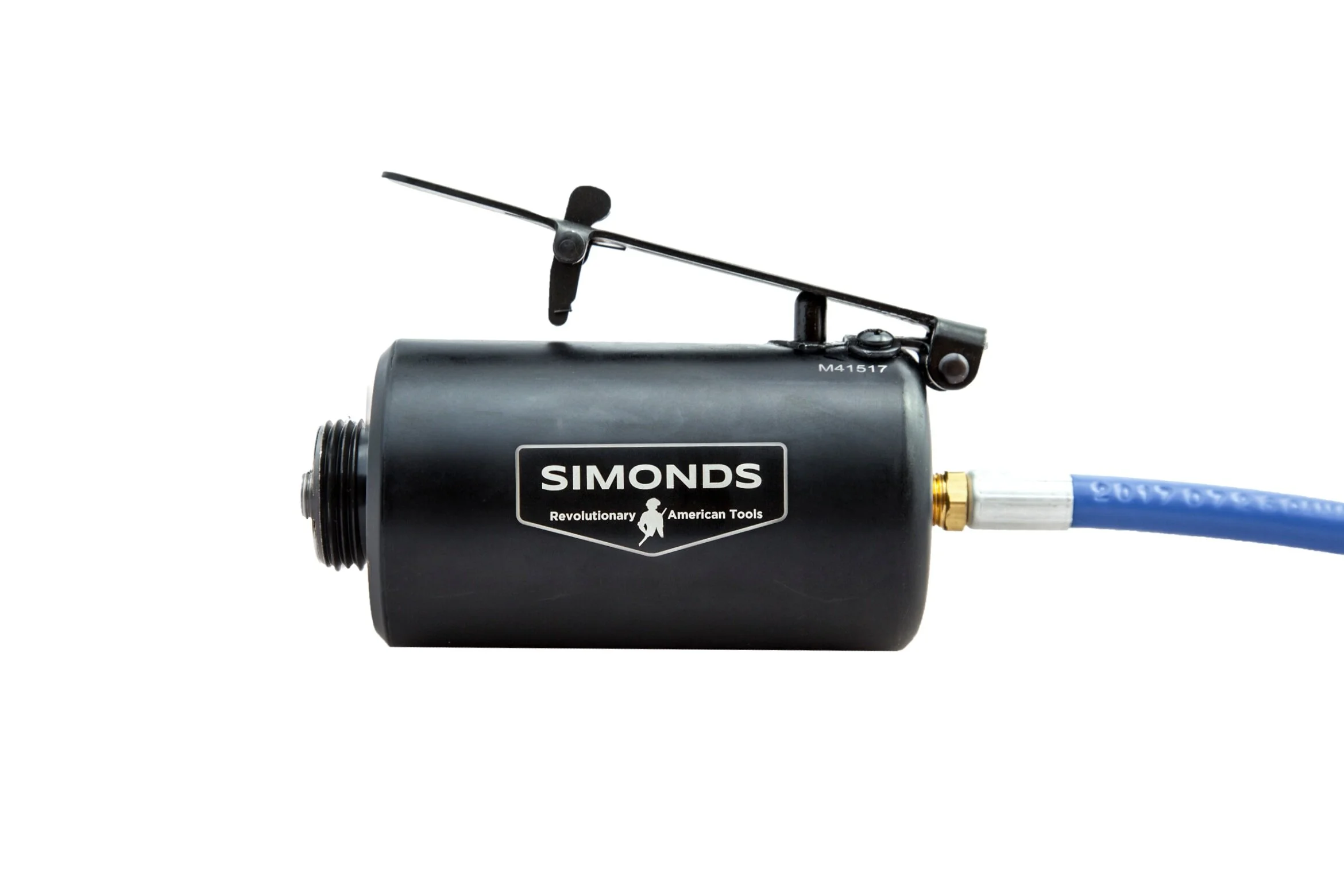

SP-004

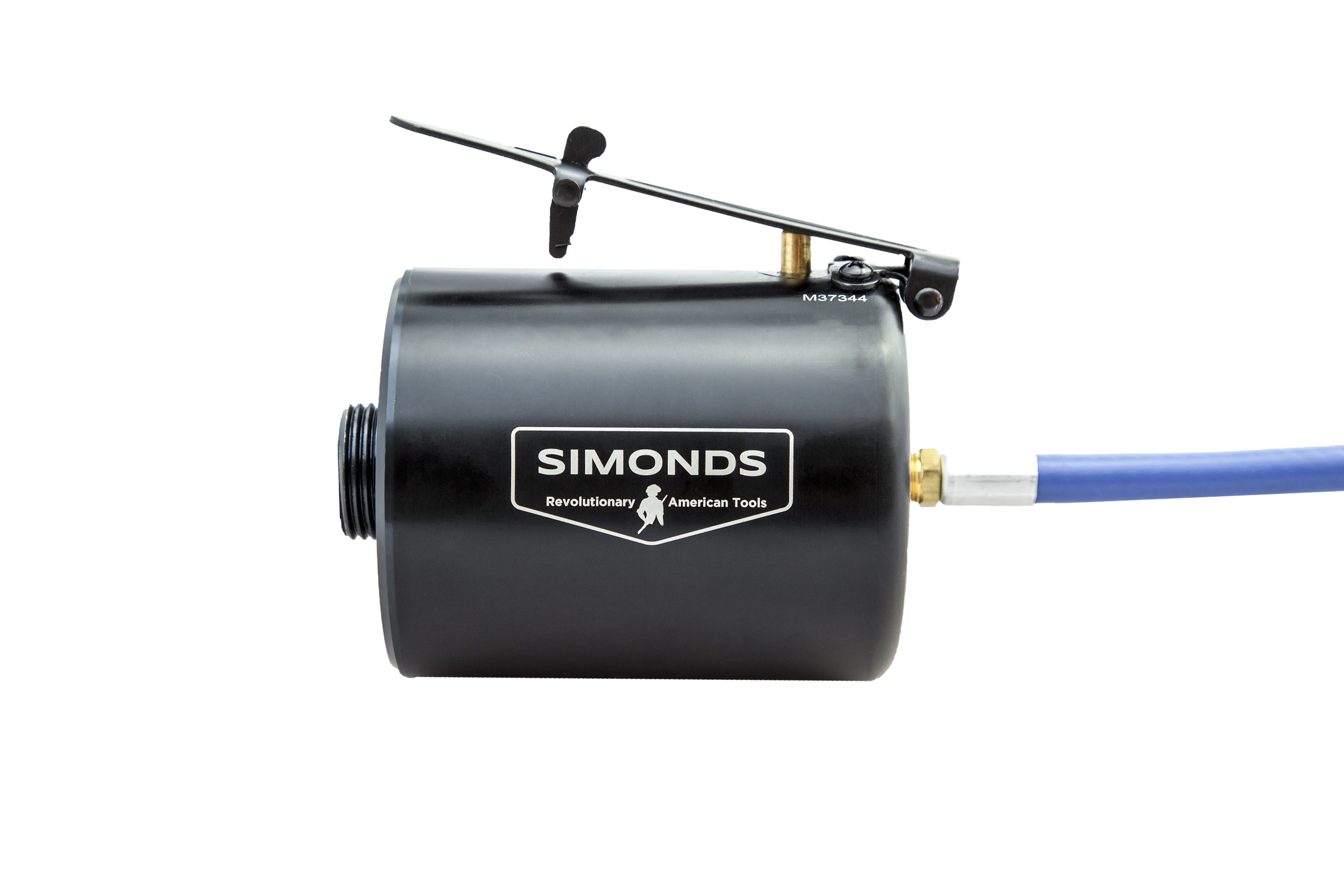

SP-006
| Medium-Duty Pneumatic Single Stage Power Packs | ||||
|---|---|---|---|---|
| Part Number | SP-002 | SP-003 | SP-004 | SP-006 |
| Length | 4" (100.00mm) | 4" (101.6mm) | 4" (100mm) | 4" (100mm) |
| Weight | 1lb | 1lb 7oz | 1lb 8oz | 1lb 8oz |
| Diameter | 1.72" (43.75mm) | 2.22" (56.25mm) | 2.46" (62.50mm) | 3.25" (82.55mm) |
| CFM@30 Strokes/Min | 0.09 cfm | 0.16 cfm | 0.20 cfm | 0.350 cfm |
| Closing Force @ 80psi | Up to 1120 lbs | Up to 2000 lbs | Up to 2400 lbs | Up to 3200 lbs |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Options | Foot-controlled (SP-001F) | Foot-controlled (SP-003F) | Foot-controlled (SP-004F) | Foot-controlled (SP-006F) |
By increasing the outer diameter of the power pack, Simonds is able to increase the power behind the piston shaft. This can have a dramatic effect on the closing jaws to cut thicker medium, punch through materials or crimp larger connectors.
MAXIMUM-DUTY PNEUMATIC POWER PACKS
Jaws Sold Separately
SP-002.5

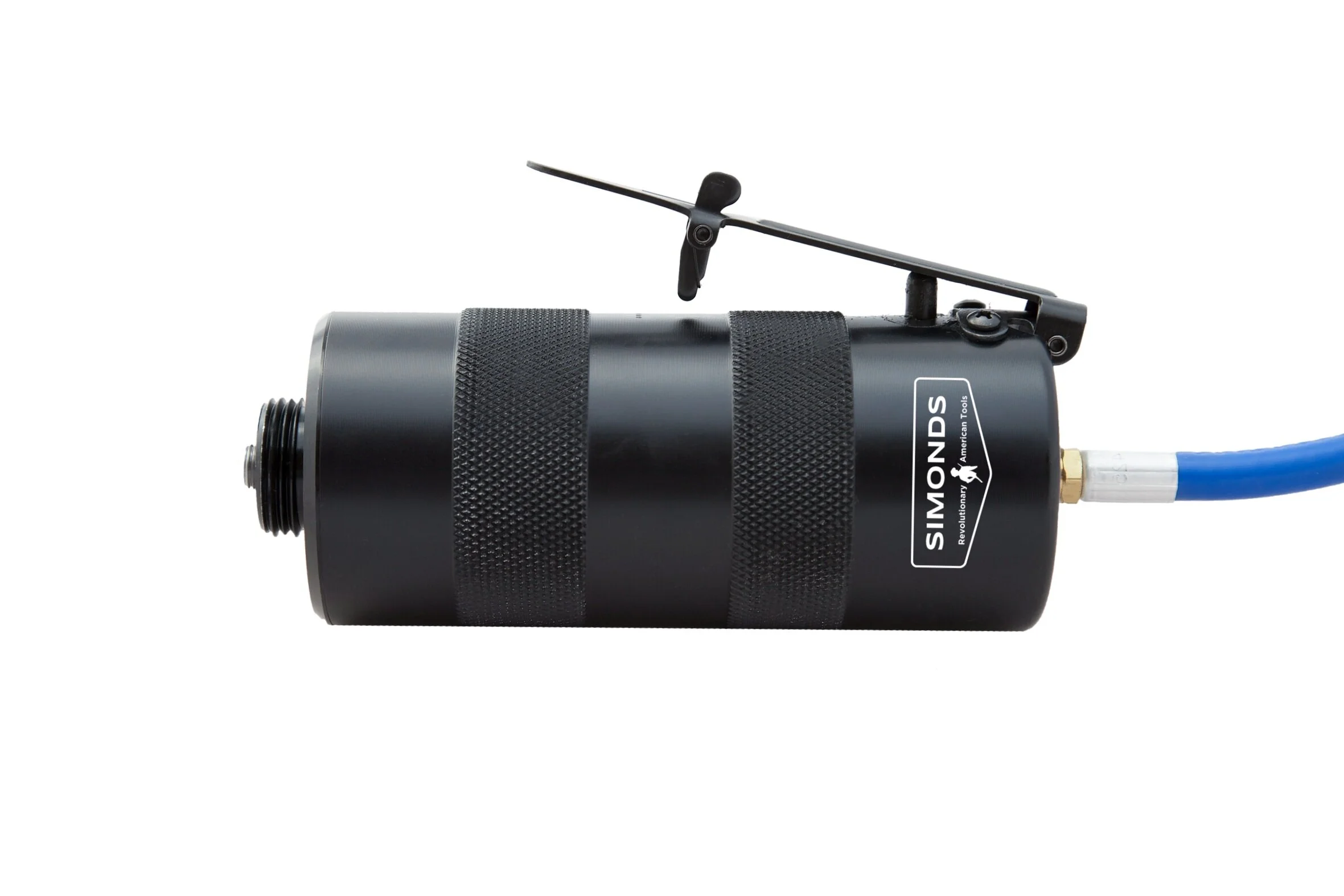

SP-005
SP-008
| Maximum-Duty Pneumatic Dual-Stage Power Packs | |||
|---|---|---|---|
| Part Number | SP-002.5 | SP-005 | SP-008 |
| Length | 5.75" (146.05mm) | 5.63" (142.87mm) | 5.63" (142.87mm) |
| Weight | 1.5lb | 2lb 2oz | 2lb 2oz |
| Diameter | 2.0" (50.8mm) | 2.5" (63.5mm) | 2.88" (73.15mm) |
| CFM@30 Strokes/Min | 0.30 cfm | 0.35 cfm | 0.35 cfm |
| Closing Force @ 80psi | Up to 2400 lbs | Up to 3500 lbs | Up to 4000 lbs* |
| Material | Aluminum | Aluminum | Aluminum |
| Options | Foot-controlled (SP-002.5F) | Foot-controlled (SP-005F) | Foot-controlled (SP-008F) |
Need more power but want to keep the tool easy to grasp? These dual-stage tools are just the thing. By adding a little length, our dual-stage power packs respectively offer considerably more closing force. We believe one day, these smart tools will take over the industry.
