Component Lead Processors
Simonds offers 2 component lead processors, depending on your needs:
CLP-274 unit operates at 40-060 psi, is capable of processing up to 1200 piece/hour and can be used with Forming or Trimming Dies.
CLP-2000 is a larger, more powerful version that features over 175 pounds of thrust and operates at 60-80 psi.

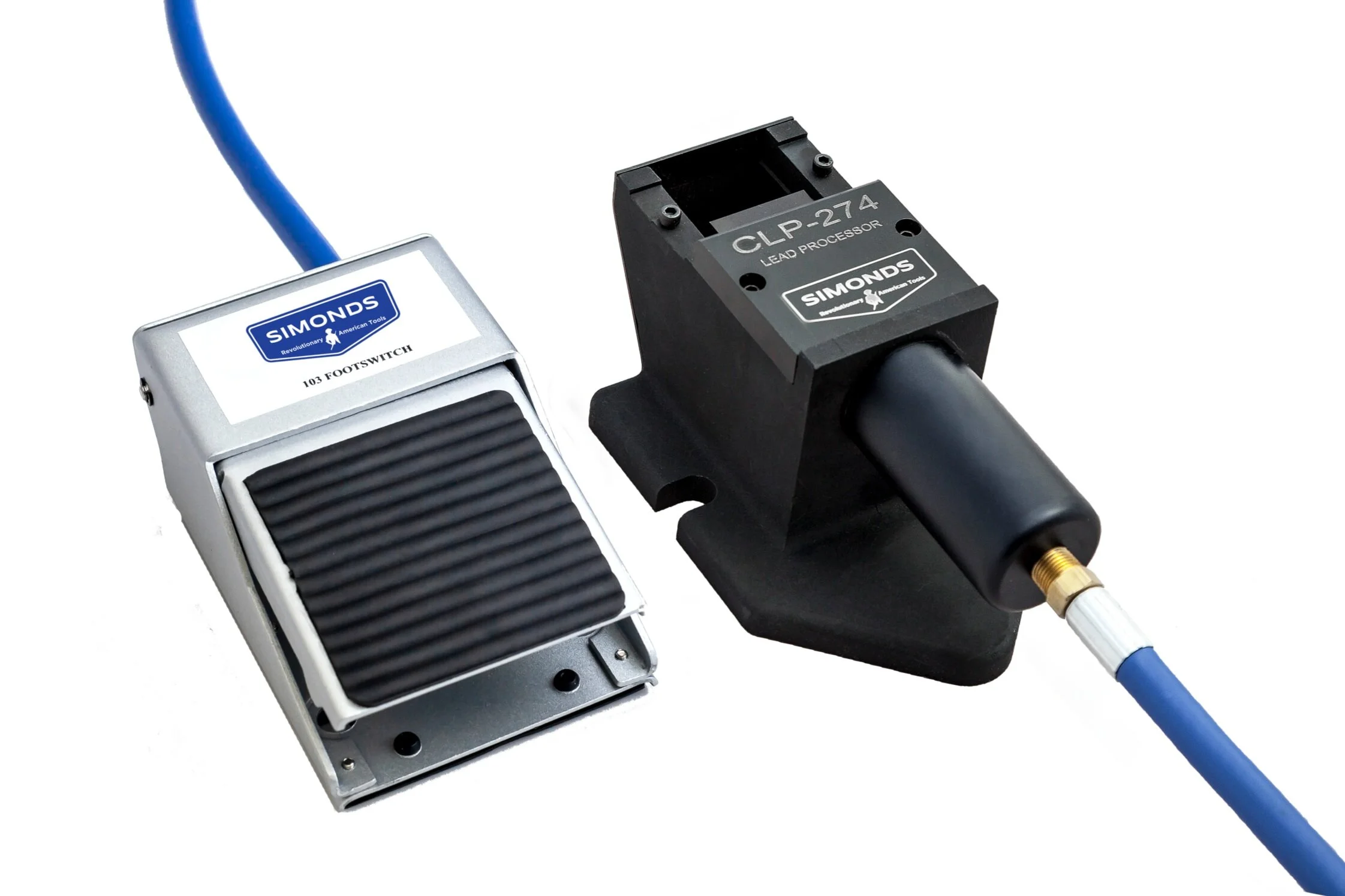

CLP-274, Semi-Automatic
The Simonds CLP-274 has these standout features:
Easily interchangeable dies
Can process up to 1200 pieces an hour
Operates at 40-60 PSI using included foot switch.
| CLP-274 Lead Processor Transistor Dies | ||||||
|---|---|---|---|---|---|---|
| Product Number | Description | Image | Bolt Circle | Total Die Thickness | Hole Diameter | Board Schematic |
| CLP-020 | Universal Transistor Trimming |  |
0.100 (2.54) 0.200 (5.08) 0.300 (7.62) |
0.200" | 0.35" |  |
| CLP-021 | Trim, Stand-off and Lock-In Die To 5 ((2.36) 3/32" above board (1.57) 1/16" board (2.98) 5/64" below board |
 |
0.200 (5.08) | 0.235" | 0.40" |  |
| CLP-022 | TO 3 to TO 5 Spread, Trip and Lock-In Die (3.96) 3/32" above board (1.57) 1/16" board (1.98) 5/64" below board |
 |
0.200 (5.08) | 0.325" | 0.040" |  |
| CLP-024 | TO 3 to TO 5 Spread and Trim Die Length increments of 1/32" (0.81) (9.52) 3/8" max length |
|
0.100 (2.54) 0.200 (5.08) |
0.225" | 0.040" | |
| CLP-274 Lead Processor Transistor Dies | ||||||
|---|---|---|---|---|---|---|
| Product Number | Description | Image | Bolt Circle | Total Die Thickness | Hole Diameter | Board Schematic |
| CLP-040 | Universal Capacitor Trimming Die with hole spacing in increments of 0.50" (1.27) from 0.100 (2.54) to 0.900 (22.86) |  |
Any center less than 1.00 (25.4) and any length in increments of 1/32" to 3/8" | 0.200" | 0.35" |  |
| CLP-041 | Capacitor Trim and Lock-In Die Also for resistor cut and lock-in |
 |
0.25 (0.66) lead diameters: 1/4",3/8", 1/2", 5/8", 3/4" (6.35, 9.52, 12.7, 15.87, 19.05) Centers | 0.235" | 0.43" |  |
| CLP-042 | Trimming of any in-line leads, power transistors, S.C.R.s and TRIACs |  |
Any center less than0.900 (22.86) | 0.225" | Slot width 0.60" |  |
| CLP-274 Lead Processor IC Dies | ||||||
|---|---|---|---|---|---|---|
| Product Number | Description | Image | Bolt Circle | Total Die Thickness | Hole Diameter | Board Schematic |
| CLP-060 | 8 Lead IC Square Trimming Die |  |
0.200" (5.08mm) Square | 0.225" | 0.35" |  |
| CLP-061 | 8 Lead IC Round Trimming Die Height in 1/32" (.81mm) increments; maximum: 3/8" (9.52mm) |
 |
0.200" (5.08mm) | 0.200" | 0.35" |  |
| CLP-062 | 16 Lead Dual In-Line Trimming Die (For uncut opposite corner leads, specify special blade) |
 |
0.100" (2.54mm) Centers |
0.093" | 0.35" |  |
| CLP-064 | 8 Lead IC Spreading Die Height in 1/32" (0.81mm) increments Maximum: 3/8" (9.52mm) Changes bolt circle from 0.200" to 0.300" |
|
0.300" (7.62mm) | 0.225" | 0.035" | |
| CLP-065 | 10 Lead IC Trimming Die |  |
0.300" (7.62mm) | 0.225" | 0.035" | |

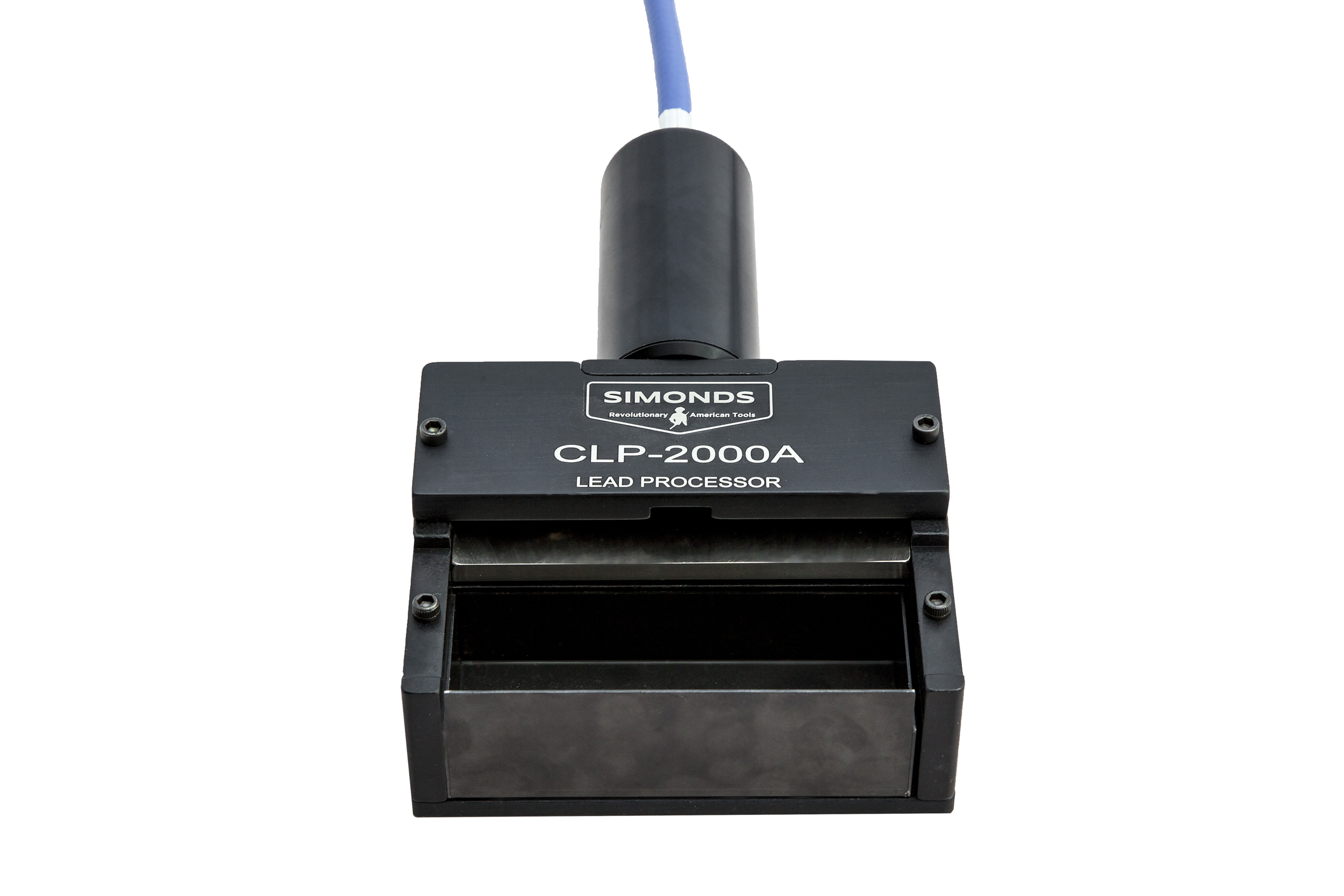

CLP-2000
Our powerful component lead processor, the CLP-2000 is a semi-automatic parts processor with these powerful features:
full 1 1/2” stroke
Operates at 60-80 psi
Included foot switch
Interchangeable steel die sets maximize investment. Dies are oil hardened tool steel 1 3/4” wide x 5 1/4” long.
| CLP-2000 Lead Processor Transistor Dies | ||||||
|---|---|---|---|---|---|---|
| Product Number | Description | Image | Bolt Circle | Total Die Thickness | Hole Diameter | Board Schematic |
| CLP-2002 | Universal Transistor Trimming (minimum leg length: 1/16" (1.57mm) |
|
0.100" (2.54mm) 0.200" (5.08mm) 0.300" (7.62mm) 0.400" (10.00mm) | 0.093" | 0.46" |  |
| CLP-2003 | Spread and Trim Die Length increments of 1/18" (1.57mm) to a maximum of 3/8" (9.52mm) length |
|
0.100" (2.54mm) 0.200" (5.08mm) 0.300" (7.62mm) |
0.250" | 0.46" |  |
| CLP-2000 Lead Processor Capacitor Dies | ||||||
| CLP-2004 | Universal Capacitor Trimming Die with hole spacing increments of 0.50" (1.27mm) from 0.100" (2.54mm) to 4.0 (100.00mm) (Min 1/16" (1.57mm) |
|
0.0035" Any center < 4.00" (100.00) and any lead diameter < 0.045" (1.13mm) Centers |
0.093" | 0.46" |  |
| CLP-2005 | Trimming of any in-line lead: Diodes, TRIACs, S.C.R.s, etc. | |
Any center less than 4.00" (100.00mm) slot width 0.062" (1.55mm) | 0.186" | 0.035" |  |
| CLP-2000 Lead Processor I.C. Dies | ||||||
| CLP-2006 | Dual In-Line Trimming Die Min 0.093" (2.36mm) |
|
Centers: 0.100 (2.54mm) 0.300" (7.62mm) 0.600 (15.00mm) Slot Length: 4.00" |
0.093" | 0.062" |  |
| CLP-2000 Lead Processor Connector Dies | ||||||
| CLP-2007 | Universal Trimming of any Connector up to 4.00" (100.00mm) |  |
Centers: 0.100 (2.54mm) 0.200" (5.08mm) 0.300" (7.62mm) Pin Spacing: 0.050" |
0.093" | 0.046" |  |
| CLP-2008 | Specialty Connector Trimming Die for any Odd Style Connector | |
As requested, up to 4.00" (100.00mm) length |
0.093" | Any Spec | |
