Simond’s tools make wire cutting and crimping a simple, quick and easier task.
Cutting and Crimping
Simond’s cut and crimp tools are the leading tools in the industry. These jaws shear soft wire at a specified “rise” distance above the working surface and flatten the rise so it is mechanical secure before soldering.
SP-01P
This is our base unit for wire cutting. Fully CNC’d machined in the USA. Comfort Foam Grip included.
| SP-01 | |
|---|---|
| Length | 5.5" (13.97mm) |
| Weight | 11 oz. |
| Diameter | 1.5" (38.1mm) |
| CFM @ 30 Strokes per Minute | 0.041 cfm |
| Closing Force @ 80 PSI | Up to 575 lbs* |
| Material | Aluminum |
| Cam | Piston Style |
SP-01PF
This foot-operated unit features our entry-level cutting capabilities. Foot switch sold separately.
| SP-02P [SP-02PF foot operated] | |
|---|---|
| Length | 5.5" (13.97mm) |
| Weight | 13 oz. |
| Diameter | 1.75" (44.45mm) |
| CFM @ 30 Strokes per Minute | 0.045 cfm |
| Closing Force @ 80 PSI | Up to 850 lbs* |
| Material | Aluminum |
| Cam | Piston Style |
SP-02
With up to 850lbs of closing force, this a great choice for wire cutting . CNC’d aluminum, custom-valving and USA made.
| SP-01 [SP-01F foot operated] | |
|---|---|
| Length | 5.5" (13.97mm) |
| Weight | 11 oz. |
| Diameter | 1.5" (38.1mm) |
| CFM @ 30 Strokes per Minute | 0.041 cfm |
| Closing Force @ 80 PSI | Up to 575 lbs* |
| Material | Aluminum |
| Cam | Piston Style |
SM-100
Perfect for robotic and automatic uses, the SM-100 is the perfect choice with Made in the USA quality.
| SM-100 Robotic/Automation Pneumatic Cutter | |
|---|---|
| Length | 4.8" (121.92mm) |
| Weight | 12 oz. |
| Diameter | 1.75" (45.44mm) |
| CFM @ 30 Strokes per Minute | 0.041 cfm |
| Closing Force @ 80 PSI | Up to 575 lbs |
| Material | Aluminum |
| Cam | Piston Style |
Soft Wire Cut and Crimp Style Jaws
SMCC-1
| SMCC-1 | |
|---|---|
| Max Soft Wire Diamater | 0.03" (0.76mm) |
| Rise | 0.03" (0.76mm) |
| Angle | 35° |
| Length of Cut | 0.09" (2.2mm) |
| Max. Tip Opening | 0.11" (2.7mm) |

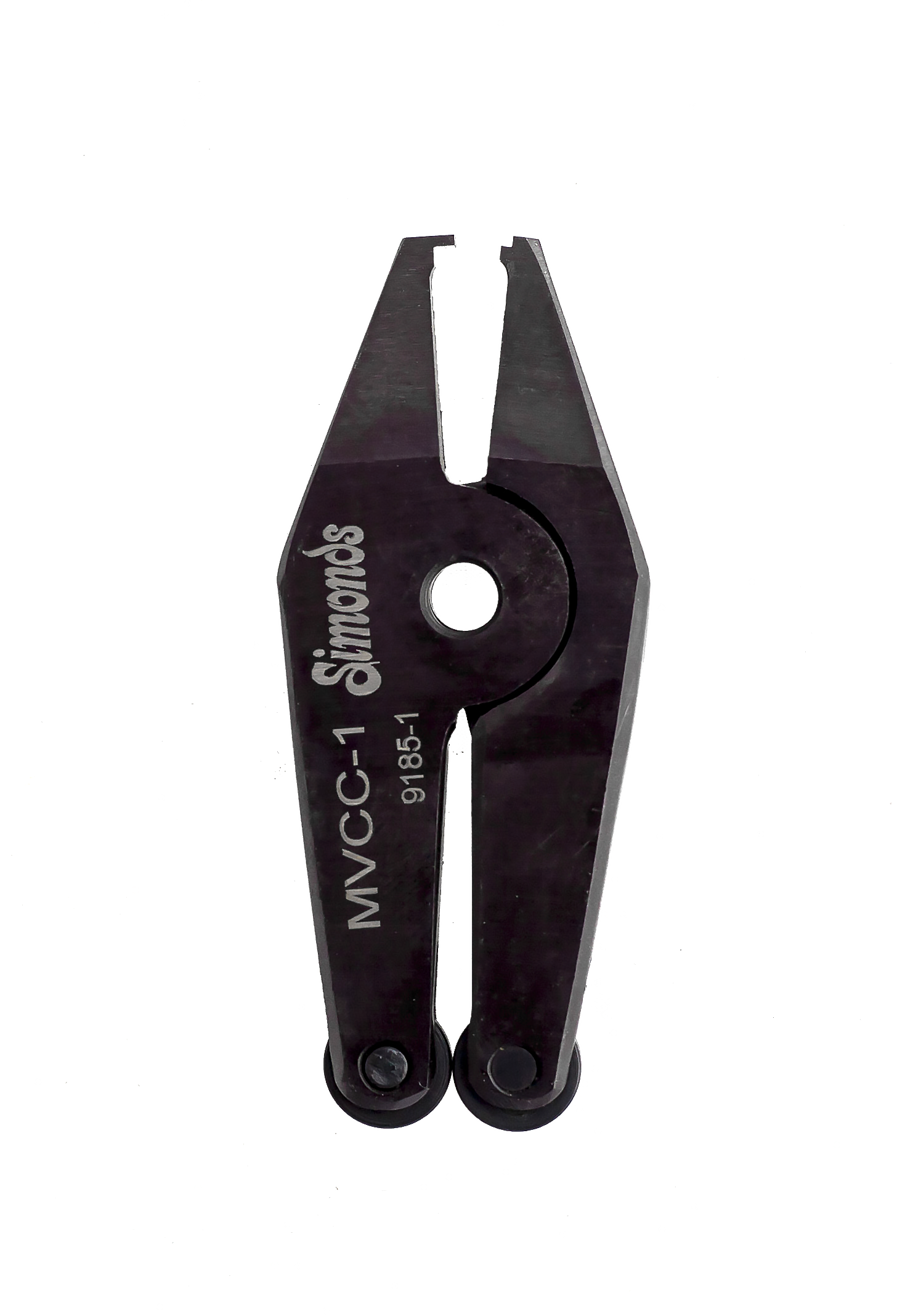

MVCC-1
| SMCC-1 | |
|---|---|
| Max Soft Wire Diamater | 0.03" (0.76mm) |
| Rise | 0.03" (0.76mm) |
| Angle | 90° |
| Length of Cut | 0.09" (2.2mm) |
| Max. Tip Opening | 0.13" (3.3mm) |
SMCC-2
| SMCC-2 | |
|---|---|
| Max Soft Wire Diamater | 0.03" (0.76mm) |
| Rise | 0.03" (0.76mm) |
| Angle | 35° |
| Length of Cut | 0.25" (6.4mm) |
| Max. Tip Opening | 0.12" (3mm) |
